18 wavelengths sensor technology

UV - VIS - IR
peaks at:

410nm

435nm

460nm

485nm

510nm

535nm

560nm

585nm

610nm

645nm

680nm

705nm

730nm

760nm

810nm

860nm

900nm

940nm

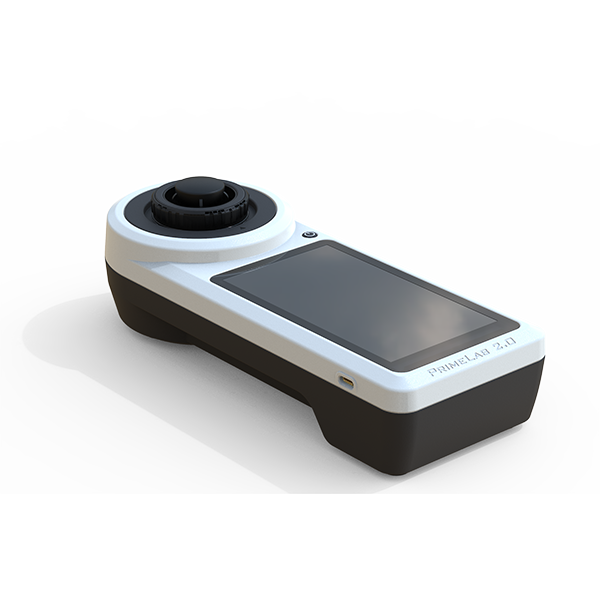

Whilst normal photometers perform tests on one selected wavelength only, the PrimeLab 2.0 receives data from 18 different wavelengths in parallel with each measurement, covering the key parts of UV and IR section of the spectrum and the full VIS range.

3 sensors with 6 wavelengths each are connected to each other Correspondent LEDs are set up at 180° as well as at 90° to enable NTU-Turbidity, PTSA and Fluorescein measurements as well.

Very narrow peaks between 390 and 950 nm allow utmost accurate readings, similar to the performance of a spectrophotometer.

The highly professional PrimeLab 2.0 firmware interpolates between the different wavelength-readings whilst parameter curves are set up to use multiple wavelengths to obtain the most accurate test results.

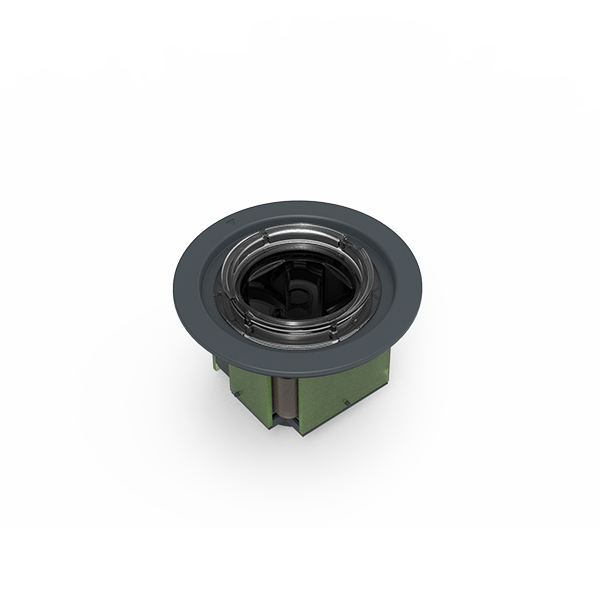

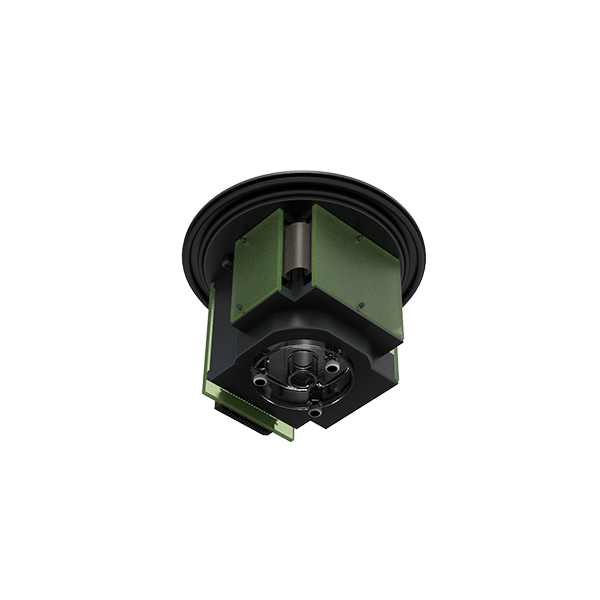

The built in SmartChamber has 3 PCBs, connected to each other. The MASTER PCB receives LED signals from either 180° (direct) or 90° (indirect), required for NTU-Turbidity and water samples which need to be excited, such as for PTSA, Fluorescein or Plankton.

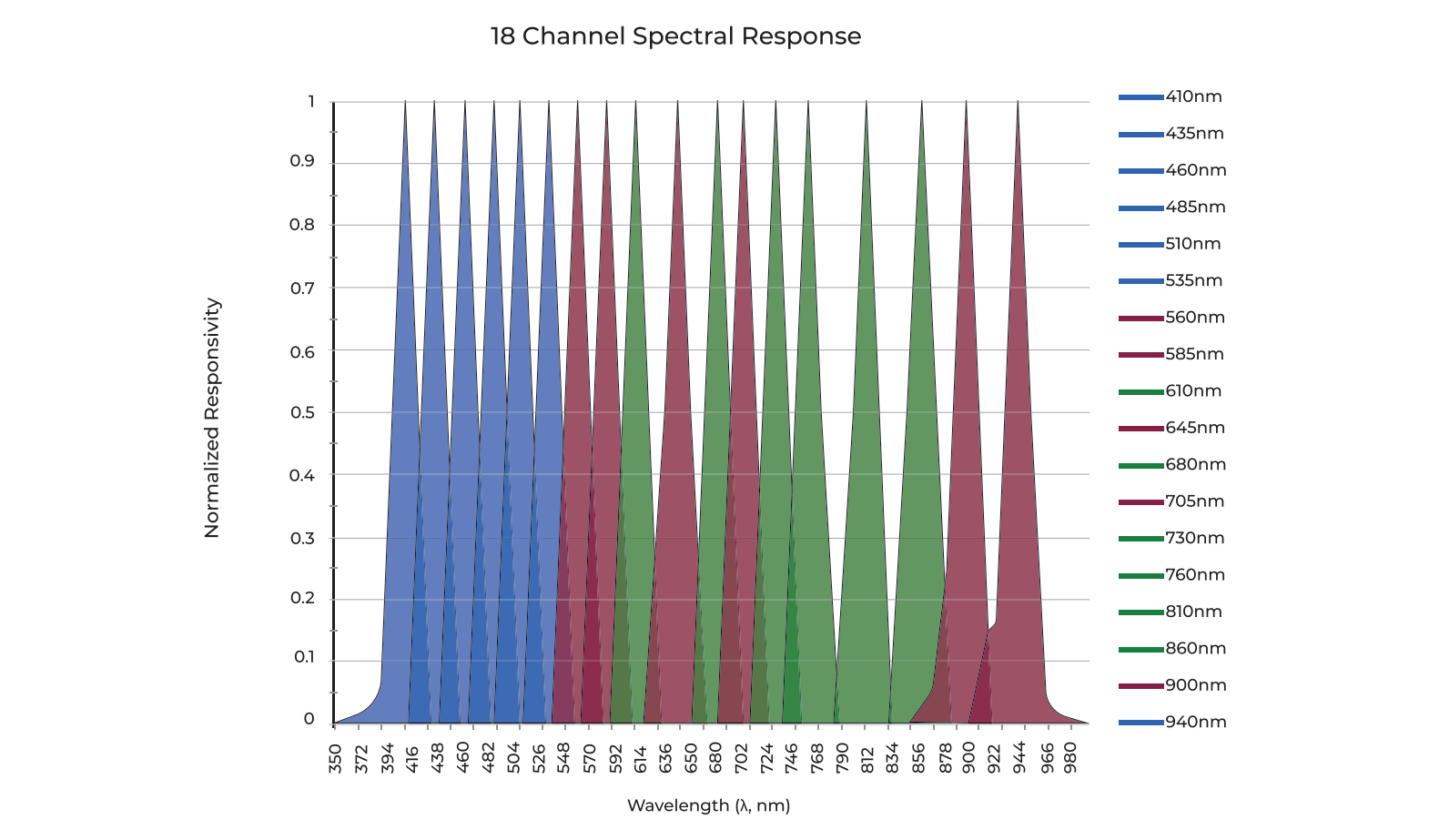

18 wavelengths throughout the UV - VIS - IR range are covered by sensors used by the PrimeLab 2.0 Narrow peaks on the spectral curve allow utmost accuracy.
